Welcome to Tracker One Developer Docs

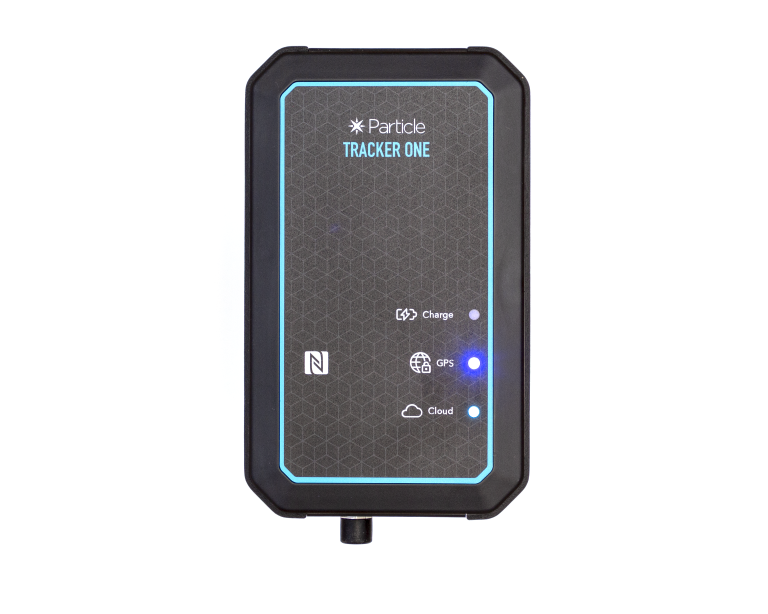

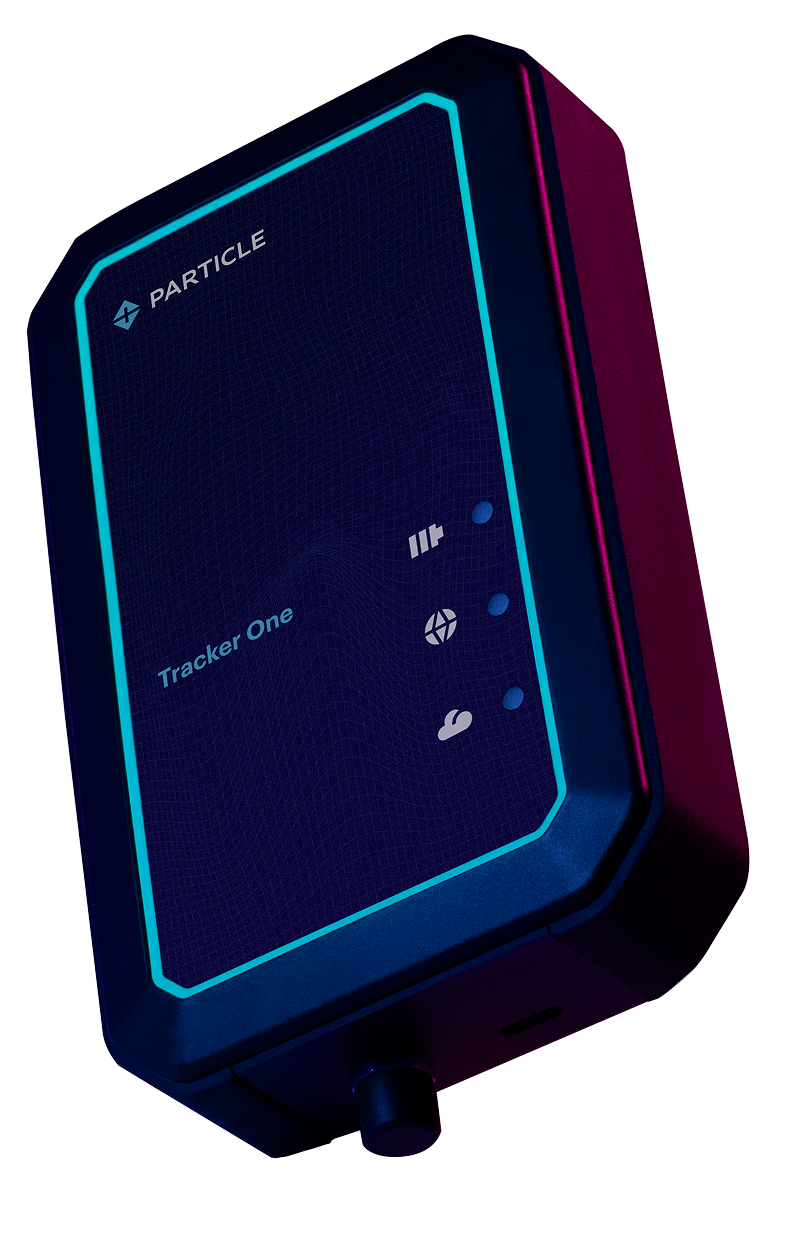

The Tracker One is a ready-to-go Particle gateway device built around the Tracker SoM, designed for rapid deployment in asset tracking and IoT applications. Housed in a rugged, weatherproof enclosure, it provides the hardware flexibility and connectivity needed to interface with external devices and sensors.

Mount plate installation

Overview​

Like other Particle gateway devices such as the Monitor One, the Tracker One is built for out-of-the-box use. It supports industry-standard protocols including CAN bus, I²C, and serial, making it easy to connect to a wide range of peripherals. With its onboard GNSS antenna, flexible power options, and robust IP67-rated design, the Tracker One delivers reliable performance in demanding environments.

Key Features​

  • IP67-rated enclosure – fully weatherproof and ready for field deployment.
  • Onboard GNSS antenna – high-gain antenna for strong and reliable signal reception.
  • Flexible power supply – supports 6–30V input, USB-C (5V), LiPo battery with charge LED, and up to 90V when connecting directly to the carrier board.
  • High-precision thermistor – accurate to within 1%.
  • Extensible M8 connector – IP67-rated with CAN Bus, UART, GPIO, and power for expansion.
  • USB-C interface – for flashing, debugging, and power with faster charging rates than Micro-USB.
  • RGB status LED – configurable for user applications and Particle system status.
